UV Curing Security Housing Fixing Adhesive
3112 UV Curing Security Housing Fixing Adhesive is a light yellow transparent, fast-curing UV adhesive specially formulated for security equipment housing fixing. It offers fast curing with high strength, multiple viscosity options for easy application, and excellent adhesion to glass, metal, plastic and painted surfaces, together with outstanding aging resistance.
Technical Specifications
| Color |
Light yellow transparent |
| Viscosity (25°C) |
5500±500 mPa.s |
| Curing Condition |
600 mJ/cm² (UV) |
| Hardness |
Shore D 68 |
| Glass Transition (Tg) |
65°C |
| Adhesion (100 grid test) |
16N |
| Shelf Life |
12 months (8-28°C) |
| Packaging |
1kg |
Key Features
- Fast curing with high strength
- Multiple viscosity options for easy application and dispensing
- Excellent adhesion to glass, metal, plastic and painted surfaces
- Excellent aging resistance
- Ideal for security equipment housing fixing
- Reliable bonding and fixing of security device housings
Applications

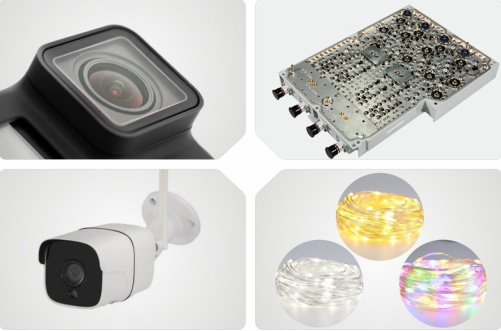

- Security equipment housing fixing
- Bonding of metal, plastic and painted housing parts
- Fixing of security camera and access control housings
- Bonding of glass and metal components in security devices
- Applications requiring fast cure and high strength
Operation and Curing Guide
- Surface preparation: clean the housing and bonding surfaces to remove oil, dust and contaminants for full adhesion.
- Dispensing: select a suitable viscosity and apply the adhesive evenly to the fixing area.
- Assembly: join and position the housing parts and remove any excess adhesive before curing.
- UV curing: expose the adhesive to UV light at 600 mJ/cm² until fully cured.
- Inspection: verify complete coverage and a firm, secure housing bond.
- Rework: gently separate bonded parts, clean the surfaces and re-apply the adhesive when repair is needed.
FAQ
Q1: What is the 3112 adhesive mainly used for?
3112 is a UV curing security housing fixing adhesive used for bonding and fixing security equipment housings.
Q2: How fast does it cure?
3112 cures quickly under UV light at 600 mJ/cm² and provides high strength for reliable fixing.
Q3: What materials does it bond?
3112 offers excellent adhesion to glass, metal, plastic and painted surfaces.
Q4: Is it easy to apply?
Yes. 3112 is available in multiple viscosities, making it easy to select the right consistency for different housing designs and dispensing processes.
Q5: What adhesion and hardness does it provide?
3112 achieves a 16N adhesion result in the 100 grid test with a Shore D 68 hardness and a glass transition temperature (Tg) of 65°C.
Q6: What are the storage conditions and packaging?
Store at 8-28°C in the original sealed container. Shelf life is 12 months. Available in 1kg packaging.
