Precision UV Curing Solution for High-Speed Automated Adhesive Dispensing Lines
Industrial automated dispensing systems require more than simply applying adhesive—they demand rapid curing, consistent bonding strength, and seamless integration into high-speed production environments.

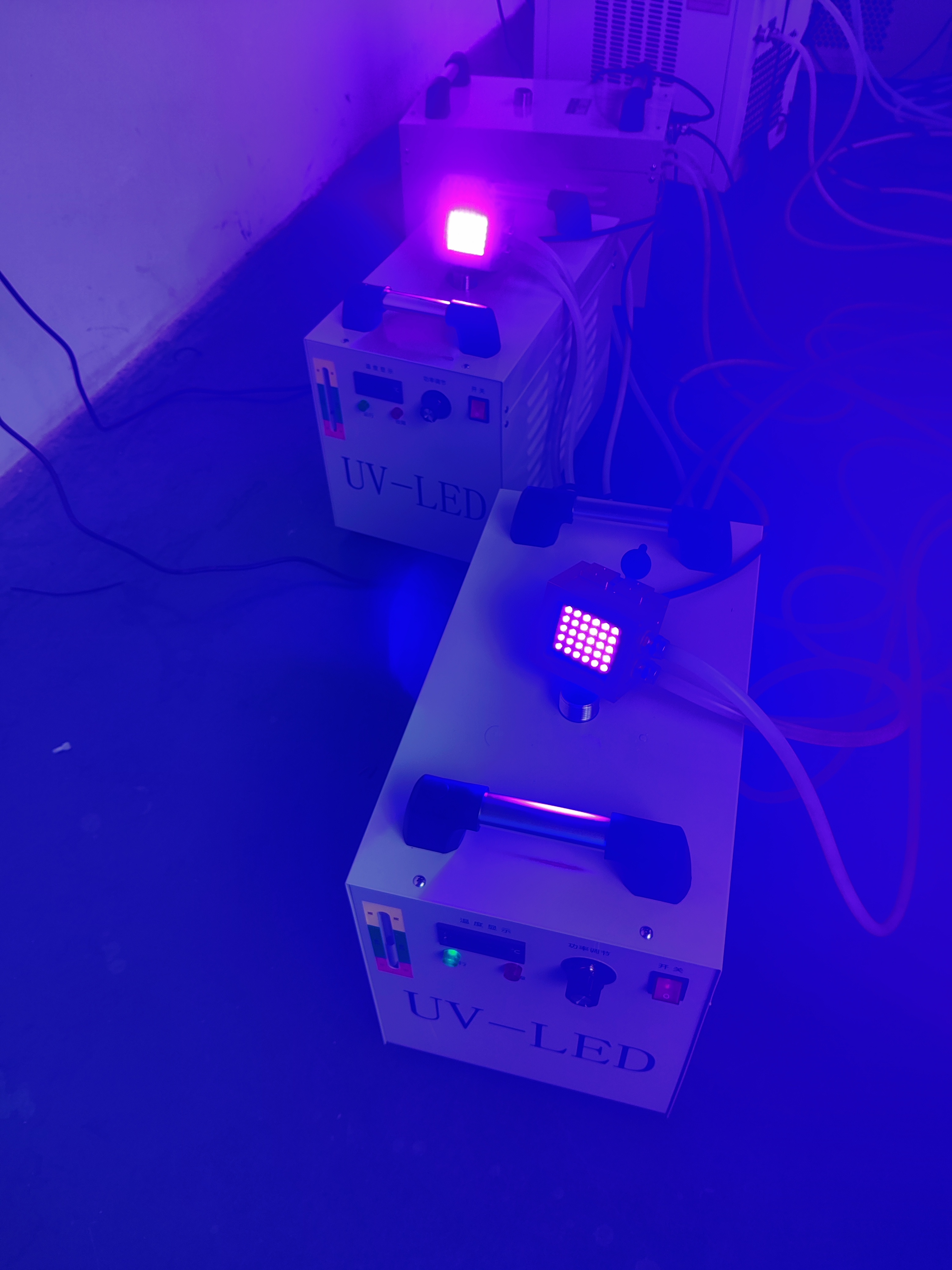

The CG Water-Cooled UV LED Curing System is specifically engineered for automated dispensing equipment, delivering ultra-high UV intensity with compact dimensions for installation in robotic dispensing cells, inline assembly machines, and fully automated manufacturing lines.
Compatible with UV adhesives, UV resins, UV encapsulants, UV sealants, and optical bonding materials, this system provides instant curing without heat damage, improving production efficiency while ensuring consistent product quality.
Technical Specifications
| Item |
Specification |
| Model |
CG-CT10 Series |
| UV Source |
High-Power UV LED |
| Power |
300W (Custom Available) |
| Peak Irradiance |
Up to 18W/cm² |
| Available Wavelengths |
365nm / 385nm / 395nm / 405nm |
| Cooling Method |
Water Cooling |
| Input Voltage |
AC85–265V |
| Intensity Adjustment |
0–100% |
| LED Lifetime |
＞20,000 Hours |
| Emitting Window |
Customizable |
| Control Method |
Manual / PLC / External Trigger |
| Certification |
CE / RoHS |
Compatible Materials
The system is suitable for curing:
- UV Adhesives
- UV Epoxy
- UV Acrylic Adhesives
- UV Resin
- UV Sealants
- UV Encapsulants
- UV Optical Adhesives
- UV Conformal Coatings
- UV Varnish
- UV Ink
Customization Services
We provide complete OEM and customized UV curing solutions.
Available options include:
- Custom irradiation window size
- Customized wavelength
- Different power outputs
- Air cooling or water cooling
- Multi-head curing systems
- PLC communication
- Conveyor integration
- Robot integration
Why Choose UV-LED?
Unlike traditional mercury lamp systems or thermal ovens, the UV-LED delivers instant-on, instant-off operation with no warm-up time, no ozone generation, and dramatically lower energy consumption. The transition from "minutes under heat" to "seconds under light" not only preserves material integrity but also boosts production throughput by up to 80% compared to conventional curing methods. Solvent-free, VOC-free operation ensures full compliance with the most stringent environmental regulations including RoHS and REACH.
OEM and ODM inquiries are welcome. Curing area dimensions, wavelength, and power configurations can be fully customized to your specific production requirements. Contact us today to discuss your application.
